DATOS TÉCNICOS

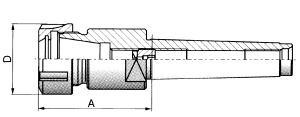

| Código | Cono Morse | A | D | Rango de sujeción |
| AC334116M2 | 2-ER 16 | 50 | 32 | 2–10 |
| AC334120M2 | 2-ER 20 | 50 | 35 | 2–13 |
| AC334125M2 | 2-ER 25 | 60 | 42 | 2–16 |
| AC334132M2 | 2-ER 32 | 60 | 50 | 2–20 |
| AC334140M2 | 2-ER 40 | 80 | 63 | 2–26 |
| AC334116M3 | 3-ER 16 | 50 | 32 | 2–10 |
| AC334120M3 | 3-ER 20 | 50 | 35 | 2–13 |
| AC334125M3 | 3-ER 25 | 56 | 42 | 2–16 |
| AC334132M3 | 3-ER 32 | 60 | 5 | 2–20 |
| AC334140M3 | 3-ER 40 | 80 | 63 | 2–26 |
| AC334125M4 | 4-ER 25 | 60 | 42 | 2–16 |
| AC334132M4 | 4-ER 32 | 60 | 50 | 2–20 |
| AC334140M4 | 4-ER 40 | 80 | 63 | 2–26 |
| AC334132M5 | 5-ER 32 | 80 | 50 | 2–20 |
| AC334140M5 | 5-ER 40 | 80 | 63 | 2–26 |
Unidad: mm.
